LM-SF

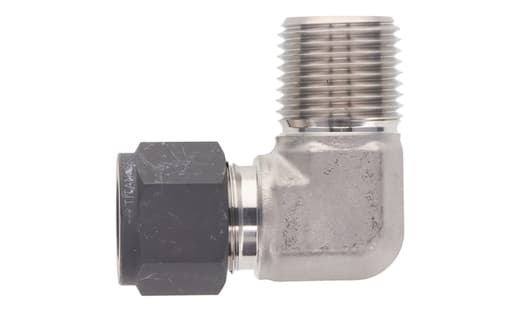

Male NPT Elbow - Single Ferrule Tube Fitting

Our 316 stainless steel single ferrule instrumentation tube fittings provide a reliable connection for a wide range of applications. The single ferrule design creates a strong and secure seal, significantly minimizing the risk of leaks and ensuring consistent flow. These fittings are engineered to endure varying conditions of vibration, temperature, and pressure, demonstrating their durability and dependability. They seamlessly integrate into diverse instrumentation systems and are well-suited for multiple industries. Designed with a focus on safety and operational efficiency, these fittings reliably meet the requirements of dynamic operational environments.

Material:316L Stainless Steel

Ferrule:Single Ferrule

Shaping:Forged

Bar Stock:ASTM A479, ASTM A276

Forging:ASTM B164

Dimensional Drawings

Technical Specs

Competitor Cross Reference

Item code	Item name	Qty	List price	Your price	Total
LM-1-1N-SF	1/16 Tube x 1/16" Male NPT 90 Elbow - SFS	Quantity	List price $27.78	Your price	Total $27.78
LM-10-12N-SF	5/8" Tube x 3/4" Male NPT 90 Elbow - SFS	Quantity	List price $44.13	Your price	Total $44.13
LM-10-6N-SF	5/8" Tube x 3/8" Male NPT 90 Elbow - SFS	Quantity	List price $45.98	Your price	Total $45.98
LM-10-8N-SF	5/8" Tube x 1/2" Male NPT 90 Elbow - SFS	Quantity	List price $36.79	Your price	Total $36.79
LM-12-12N-SF	3/4" Tube x 3/4" Male NPT 90 Elbow - SFS	Quantity	List price $45.05	Your price	Total $45.05
LM-12-8N-SF	3/4" Tube x 1/2" Male NPT 90 Elbow - SFS	Quantity	List price $42.16	Your price	Total $42.16
LM-14-12N-SF	7/8" Tube x 3/4" Male NPT 90 Elbow - SFS	Quantity	List price $59.05	Your price	Total $59.05
LM-16-12N-SF	1" Tube x 3/4" Male NPT 90 Elbow - SFS	Quantity	List price $83.86	Your price	Total $83.86
LM-16-16N-SF	1" Tube x 1" Male NPT 90 Elbow - SFS	Quantity	List price $73.37	Your price	Total $73.37
LM-2-2N-SF	1/8 Tube x 1/8" Male NPT 90 Elbow - SFS	Quantity	List price $18.36	Your price	Total $18.36
LM-2-4N-SF	1/8 Tube x 1/4" Male NPT 90 Elbow - SFS	Quantity	List price $18.64	Your price	Total $18.64
LM-20-20N-SF	1 1/4" Tube x 1 1/4" Male NPT 90 Elbow - SFS	Quantity	List price $211.84	Your price	Total $211.84
LM-24-24N-SF	1 1/2" Tube x 1 1/2" Male NPT 90 Elbow - SFS	Quantity	List price $279.89	Your price	Total $279.89
LM-3-2N-SF	3/16" Tube x 1/8" Male NPT 90 Elbow - SFS	Quantity	List price $18.36	Your price	Total $18.36
LM-3-4N-SF	3/16" Tube x 1/4" Male NPT 90 Elbow - SFS	Quantity	List price $17.73	Your price	Total $17.73
LM-32-32N-SF	2" Tube x 2" Male NPT 90 Elbow - SFS	Quantity	List price $644.97	Your price	Total $644.97
LM-4-2-NR-SF	1/4" Tube x 1/8" Male NPT 90 Elbow - Single Ferrule Stainless \| Tube Fittings	Quantity	List price $16.35	Your price	Total $16.35
LM-4-2N-SF	1/4" Tube x 1/8" Male NPT 90 Elbow - SFS	Quantity	List price $18.36	Your price	Total $18.36
LM-4-4N-SF	1/4" Tube x 1/4" Male NPT 90 Elbow - SFS	Quantity	List price $17.66	Your price	Total $17.66
LM-4-6N-SF	1/4" Tube x 3/8" Male NPT 90 Elbow - SFS	Quantity	List price $21.20	Your price	Total $21.20
LM-4-8N-SF	1/4" Tube x 1/2" Male NPT 90 Elbow - SFS	Quantity	List price $26.96	Your price	Total $26.96
LM-5-2N-SF	5/16" Tube x 1/8" Male NPT 90 Elbow - SFS	Quantity	List price $17.60	Your price	Total $17.60
LM-5-4N-SF	5/16" Tube x 1/4" Male NPT 90 Elbow - SFS	Quantity	List price $18.14	Your price	Total $18.14
LM-5-6N-SF	5/16" Tube x 3/8" Male NPT 90 Elbow - SFS	Quantity	List price $21.62	Your price	Total $21.62
LM-6-12N-SF	3/8" Tube x 3/4" Male NPT 90 Elbow - SFS	Quantity	List price $51.35	Your price	Total $51.35
LM-6-2N-SF	3/8" Tube x 1/8" Male NPT 90 Elbow - SFS	Quantity	List price $21.23	Your price	Total $21.23
LM-6-4N-SF	3/8" Tube x 1/4" Male NPT 90 Elbow - SFS	Quantity	List price $21.80	Your price	Total $21.80
LM-6-6N-SF	3/8" Tube x 3/8" Male NPT 90 Elbow - SFS	Quantity	List price $22.78	Your price	Total $22.78
LM-6-8N-SF	3/8" Tube x 1/2" Male NPT 90 Elbow - SFS	Quantity	List price $29.19	Your price	Total $29.19
LM-8-12N-SF	1/2" Tube x 3/4" Male NPT 90 Elbow - SFS	Quantity	List price $40.56	Your price	Total $40.56
LM-8-4N-SF	1/2" Tube x 1/4" Male NPT 90 Elbow - SFS	Quantity	List price $25.90	Your price	Total $25.90
LM-8-6N-SF	1/2" Tube x 3/8" Male NPT 90 Elbow - SFS	Quantity	List price $25.90	Your price	Total $25.90
LM-8-8N-SF	1/2" Tube x 1/2" Male NPT 90 Elbow - SFS	Quantity	List price $33.21	Your price	Total $33.21

Items of 33 items
