IH-FUEL-328

Trident A2 Fuel Fill & Diesel Transfer Line

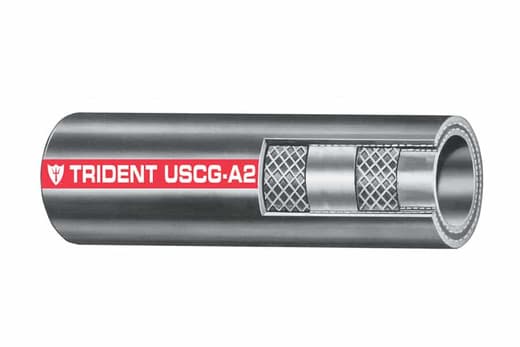

Trident's 1 1/2” soft wall A2 fuel fill hose is crafted for efficient transfer in both gasoline and diesel applications. With a resilient construction, it withstands aging, fire, and environmental factors. Its soft wall design is optimal for straight connections or those with minimal bends.

Applications:Ideal for gasoline fill and diesel transfer, compatible with ethanol and biodiesel blends

Specifications:- Tube: NBR - Cover: NBR/EPDM Blend - Reinforcement: Polyester 2 spiral

Temperature Range:-4°F to 212°F (-20°C to 100°C)

Key Features:Resistant to aging, fire, heat, cold, and ozone; designed for straight connections or slight bends

Certifications:Exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A2; NMMA Type Accepted, CE certified

Available Lengths:12.5’ (3.81 m), 50’ (15.24 m)

Item code	Item name	Qty	List price	Your price	Total
MH-328-24-12	1-1/2" ID x 12.5' length-Marine Type A2 Fuel Hose, Soft Wall, USCG, ISO 7840, SAE J1527, NMMA Type Accepted, Lloyd's, CE Certified	Quantity	List price $337.36	Your price	Total $337.36
MH-328-24-12-TB	1-1/2" ID x 12.5' length w/4 T-Bolt Clamps-Marine Type A2 Fuel Hose, Soft Wall, USCG, ISO 7840, SAE J1527, NMMA Type Accepted, Lloyd's, CE Certified	Quantity	List price $409.10	Your price	Total $409.10
MH-328-24-50	1-1/2" ID x 50' coil-Marine Type A2 Fuel Hose, Soft Wall, USCG, ISO 7840, SAE J1527, NMMA Type Accepted, Lloyd's, CE Certified	Quantity	List price $1,370.39	Your price	Total $1,370.39
