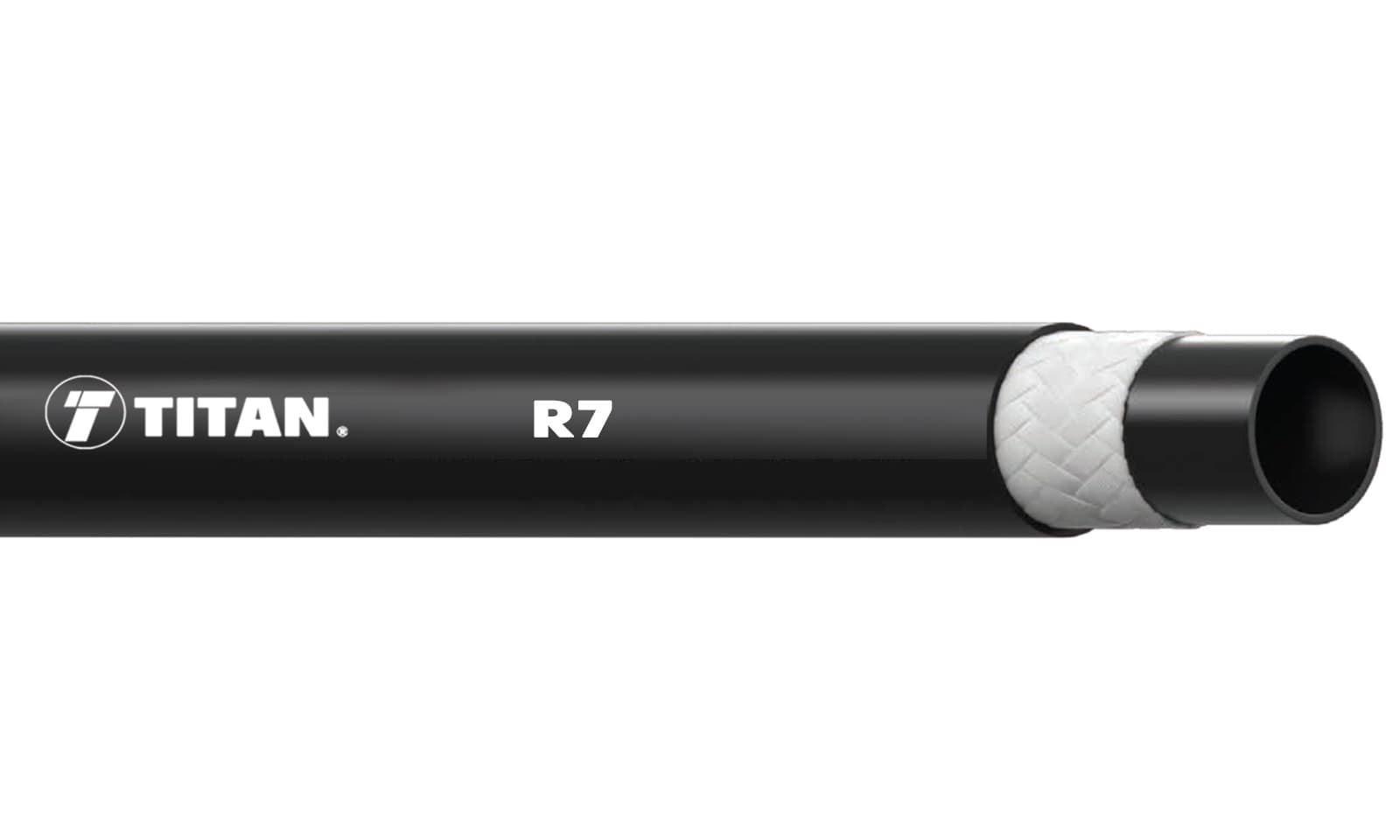

Designed with an inner core of thermoplastic elastomer to offer flexibility and optimal performance, these hydraulic hoses guarantee reliability across various high-pressure applications. The outer cover, MSHA certified, is crafted from vulcanized synthetic rubber, providing abrasion and weather resistance for enhanced durability and extended hose life.

R7 - R7 Black Thermoplastic Hose | HydraulicsDirect.com

High Pressure Thermoplastic Hydraulic Hoses

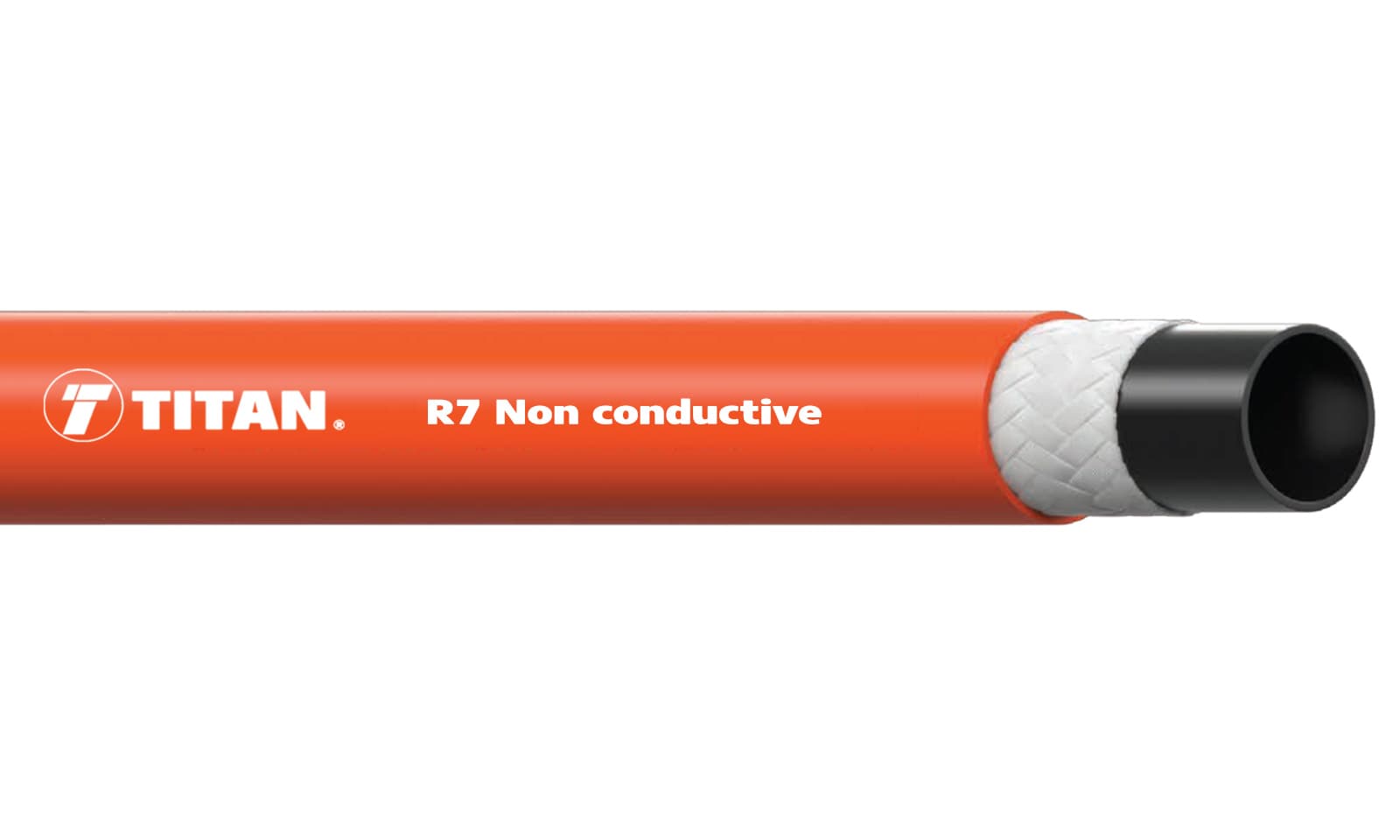

Crafted with an inner core of thermoplastic elastomer, the Orange Non-Conductive Thermoplastic Hydraulic Hoses guarantee consistent reliability across diverse high-pressure applications. The hose's outer cover, MSHA certified and composed of vulcanized synthetic rubber, provides outstanding resistance to abrasion and varied weather conditions.

R7NC

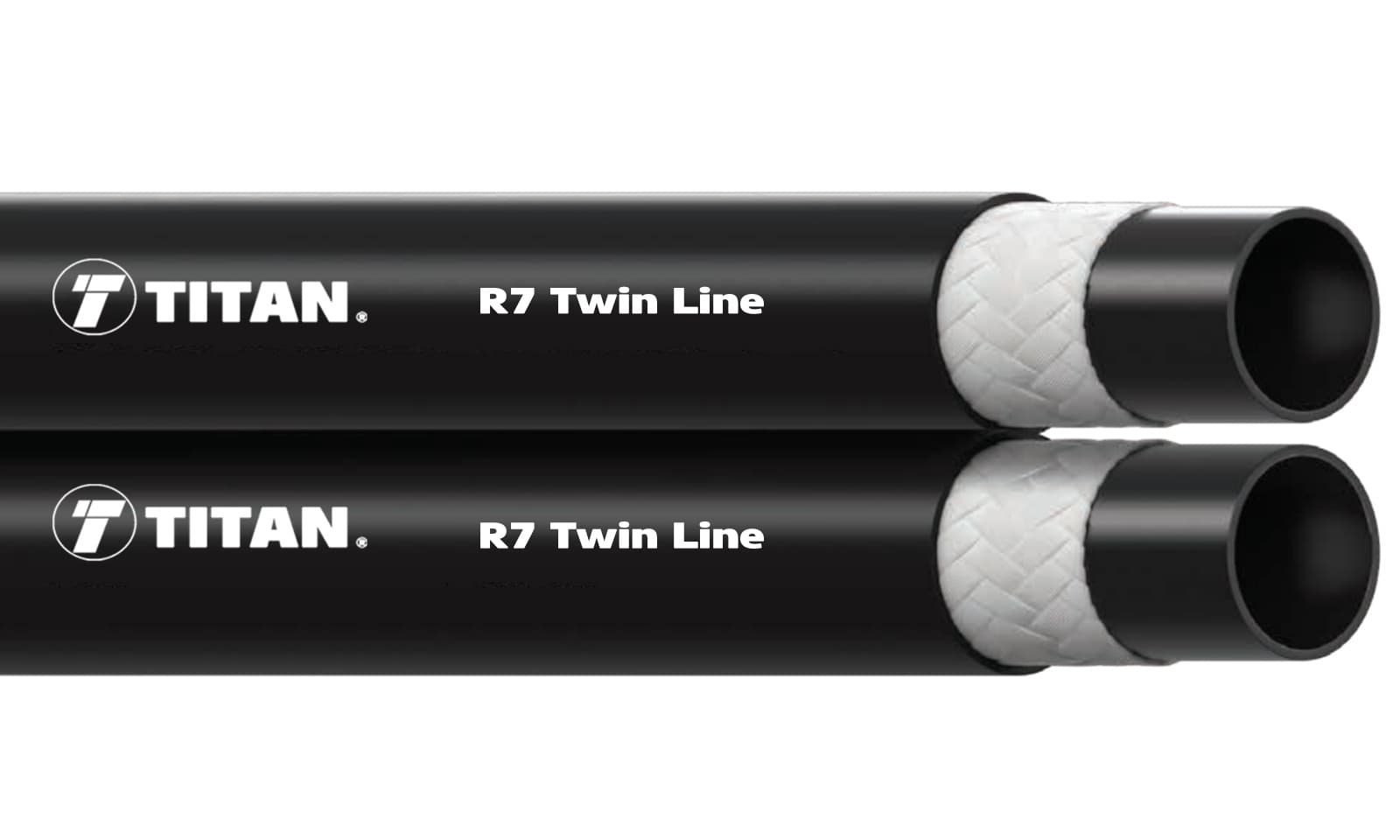

The Black Twin Line Thermoplastic Hydraulic Hoses feature a thermoplastic elastomer inner core, providing optimal flexibility and robust performance in high-pressure environments. The MSHA-certified outer cover, crafted from vulcanized synthetic rubber, exhibits resilience against abrasion and diverse weather conditions.

R7TW

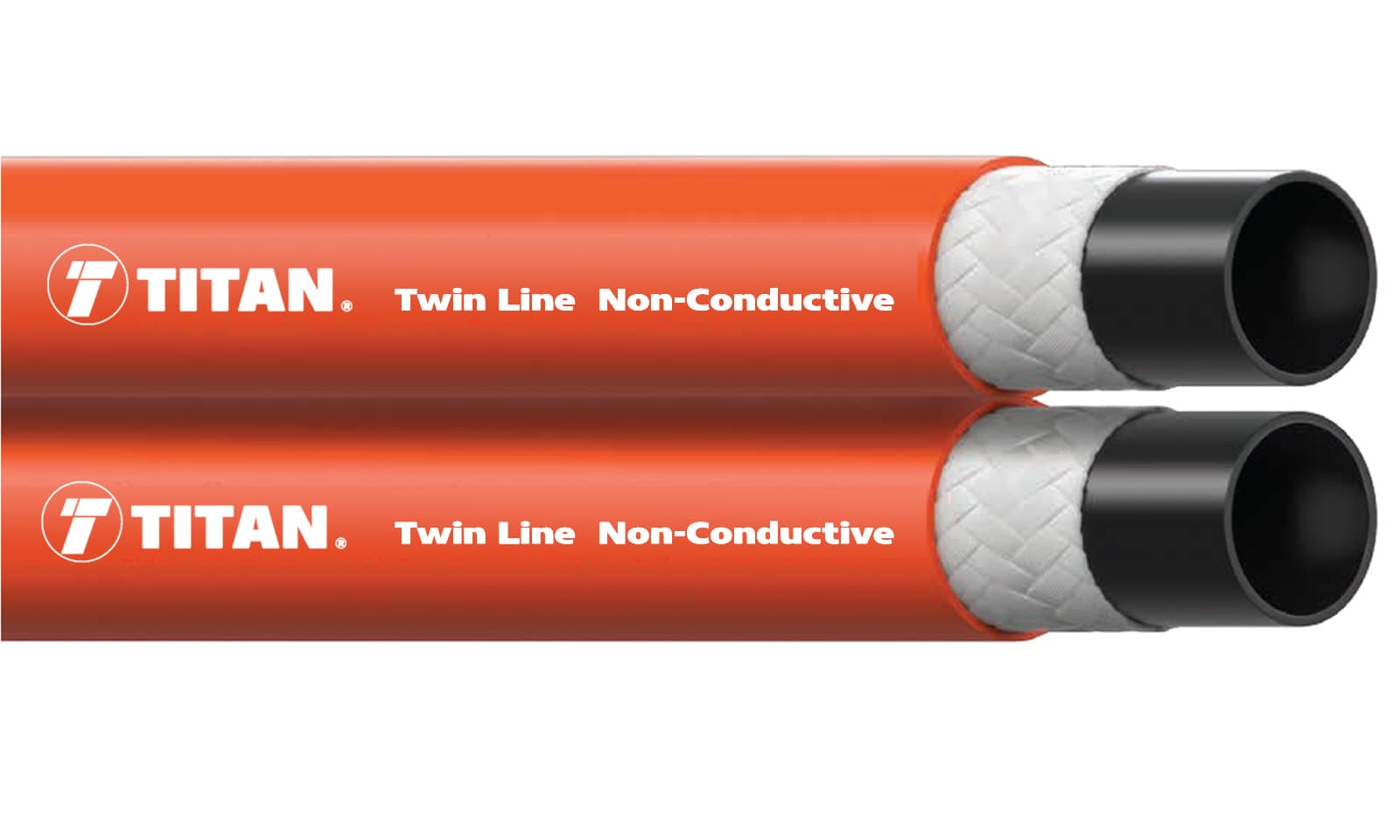

The Orange Non-Conductive Twin Line Thermoplastic Hydraulic Hoses are designed for dependable operation in high-pressure environments. Featuring a thermoplastic elastomer inner core, these hoses provide exceptional flexibility and performance. The MSHA-certified outer cover, crafted from vulcanized synthetic rubber, ensures superior resistance to abrasion and weather-related elements, safeguarding the hose's performance.

R7TWNC

R7 Orange Non-conductive Twin Line Thermoplastic Hose

HOSE SIZE	RATED (PSI)
1/8	3,000
3/16	3,000
1/4	2,750
5/16	2,500

Hose Size (ID)	Rated (psi)	Hose OD (inch)
1/4	2,830	0.5
5/16	2,540	0.579
3/8	2,320	0.646
1/2	2,030	0.799

Hose Size (ID)	Rated (psi)	Hose OD (inch)
1/4	2,828	0.539
5/16	2,538	0.614
3/8	2,320	0.724
1/2	2,030	0.886

Hose Size (ID)	Rated (psi)	Hose OD (inch)
1/4	2,828	0.539
5/16	2,538	0.614
3/8	2,320	0.724
1/2	2,030	0.886

R7

R7

High Pressure Thermoplastic Hydraulic Hoses

R7NC

Orange Non-Conductive Thermoplastic Hose

R7TW

Black Twin Line Thermoplastic Hose

R7TWNC

R7 Orange Non-conductive Twin Line Thermoplastic Hose
