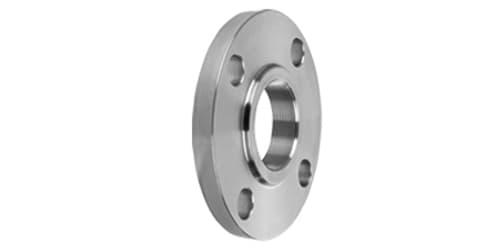

Standard 300# slip-on raised face flange made from forged 304 stainless steel.

SRF-D4

SRF-D4 300# Slip-On Raised Face Flange | 304  Stainless Steel Flanges

Standard 300# slip-on raised face flange made from forged 316 stainless steel.

SRF-D6

SRF-D6 300# Slip-On Raised Face Flange | 316  Stainless Steel Flanges

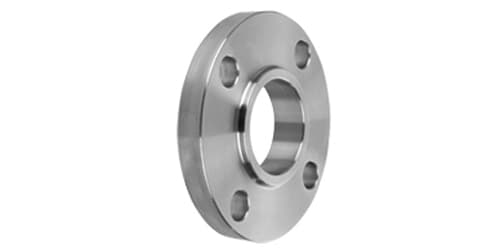

Standard 300# plate flange with a radius on the inside diameter. Made from 316 stainless steel.

LJ-D6

LJ-D6 300# Lap Joint Flange | 316  Stainless Steel Flanges | HydraulicsDirect.com | HydraulicsDirect.com | HydraulicsDirect.com

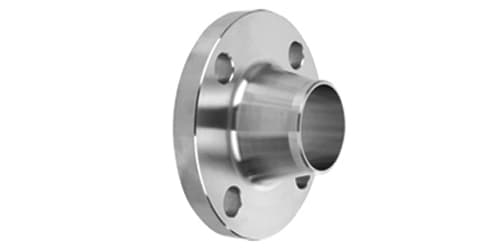

Our Weld Neck Raised Face Flanges, crafted from 304 Stainless Steel, feature a standard raised neck plate. Available in Schedule 10, 40, and 80, these flanges are versatile for general-purpose applications. The Weld Neck design ensures a sturdy connection, evenly distributing stress across the flange, suitable for various flow patterns and moderate-pressure scenarios. Select from different schedules to match your specific wall thickness and pressure requirements.

WNRF4-D4

WNRF4-D4 300# Sch. 40 Weld Neck Raised Face Flange | 304  Stainless Steel Flanges | HydraulicsDirect.com

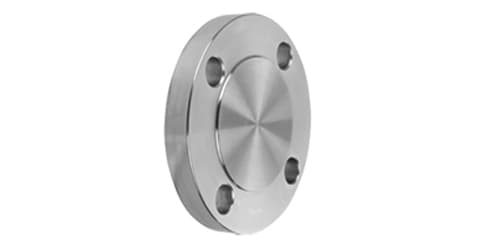

Standard plate flange with a raised face but no inside diameter. Made from 304 stainless steel. Conforms to ASME A182, ASME B16.4 and manufactured in a ISO 9001:2008 facility.

BRF-D4

BRF-D4 Blind Raised Face Flange | 304  Stainless Steel Flanges | HydraulicsDirect.com | HydraulicsDirect.com | HydraulicsDirect.com

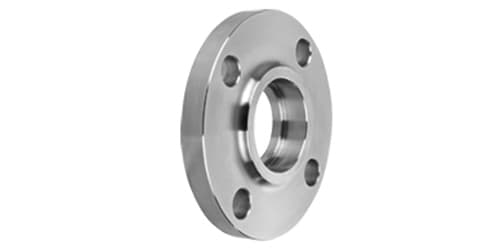

Threaded raised face flange rated at 300# and made from 304 stainless steel.

TRF-D4

TRF-D4 300# Threaded Raised Face Flange | 304  Stainless Steel Flanges

Forged from premium 304 Stainless Steel, these Weld Raised Face Flanges boast a standard plate with raised faces on both the top and bottom, complemented by a counter bore on the inside diameter. Offered in Schedule 40 and Schedule 80 variants, these flanges excel with smaller pipe sizes, renowned for their smooth flow attributes. The Weld design guarantees a robust, high-integrity connection, ideal for less turbulent flow and lower pressure scenarios. Select from various schedules to align with your precise pressure tolerance and wall thickness requirements.

SWRF4-D4

SWRF4-D4 300# Sch. 40 Socket Weld Raised Face Flange | 304  Stainless Steel Flanges

SWRF8-D4

SWRF8-D4 300# Sch. 80 Socket Weld Raised Face Flange | 304  Stainless Steel Flanges

Our Weld Neck Raised Face Flanges, crafted from 316 Stainless Steel, feature a standard raised neck plate. Available in Schedule 10, 40, and 80, these flanges are versatile for general-purpose applications. The Weld Neck design ensures a sturdy connection, evenly distributing stress across the flange, suitable for various flow patterns and moderate-pressure scenarios. Select from different schedules to match your specific wall thickness and pressure requirements.

WNFR4-D6

Standard 300# plate flange with a radius on the inside diameter. Made from 304 stainless steel.

LJ-D4

LJ-D4 300# Lap Joint Flange | 304  Stainless Steel Flanges | HydraulicsDirect.com | HydraulicsDirect.com | HydraulicsDirect.com

Standard plate flange with a raised face but no inside diameter. Made from 316 stainless steel. Conforms to ASME A182, ASME B16.4 and manufactured in a ISO 9001:2008 facility.

BRF-D6

BRF-D6 Blind Raised Face Flange | 316  Stainless Steel Flanges | HydraulicsDirect.com | HydraulicsDirect.com | HydraulicsDirect.com

Threaded raised face flange rated at 300# and made from 316 stainless steel.

TRF-D6

TRF-D6 300# Threaded Raised Face Flange | 316  Stainless Steel Flanges

Forged from premium 316 Stainless Steel, these Weld Raised Face Flanges boast a standard plate with raised faces on both the top and bottom, complemented by a counter bore on the inside diameter. Offered in Schedule 40 and Schedule 80 variants, these flanges excel with smaller pipe sizes, renowned for their smooth flow attributes. The Weld design guarantees a robust, high-integrity connection, ideal for less turbulent flow and lower pressure scenarios. Select from various schedules to align with your precise pressure tolerance and wall thickness requirements.

SWRF4-B6

150# Sch 40 SS316 Socket Weld Raised Face Flange

SWRF8-B6

150# Sch 80 SS316 Socket Weld Raised Face Flange

WNRF8-B6

150# Sch 80 SS316 Weld Neck Raised Face Flange

Standard plate flange with no inside diameter. Made from 316 stainless steel. Conforms to ASME A182, ASME B16.4 and manufactured in a ISO 9001:2008 facility.

BP-B6

BP-B6 Blind Plate Flange | 316  Stainless Steel Flanges | HydraulicsDirect.com | HydraulicsDirect.com | HydraulicsDirect.com

Standard 150# slip-on plate flange made from forged 316 stainless steel.

300# Flanges
