2702

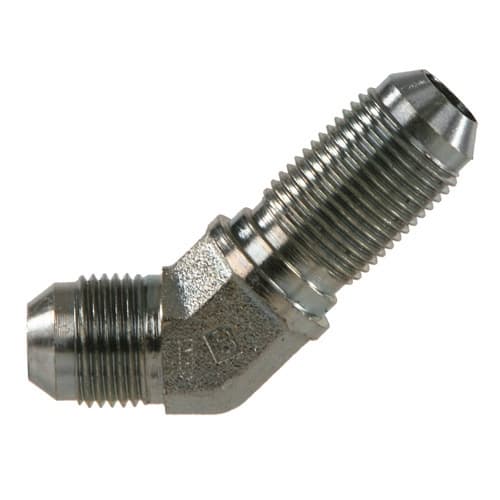

37° JIC Bulkhead Union 45° Elbow

JIC (AN Fittings) are made from robust carbon steel and feature a zinc-trivalent coating for wear and corrosion resistance. These fittings are designed for high-pressure resistance and are suitable for a variety of industrial applications. They employ a 37° flare connection that complies with the SAE J514 standard.

Material:Carbon Steel

Plating:Trivalent Zinc

Shaping:Forged

Dimensional Drawings

Technical Specs

Competitor Cross Reference

Size:

Item code	Item name	Qty	List price	Your price	Total
2702-03-03	45° Elbow, 3/16" JIC (3/8"-24 thread) x 3/16" JIC (3/8"-24 thread) Bulkhead	Quantity	List price $6.88	Your price	Total $6.88
2702-04-04	45° Elbow, 1/4" JIC (7/16"-20 thread) x 1/4" JIC (7/16"-20 thread) Bulkhead	Quantity	List price $6.92	Your price	Total $6.92
2702-05-05	45° Elbow, 5/16" JIC (1/2"-20) x 5/16" JIC (1/2"-20) Bulkhead	Quantity	List price $9.37	Your price	Total $9.37
2702-06-06	45° Elbow, 3/8" JIC (9/16"-18 thread) x 3/8" JIC (9/16"-18 thread) Bulkhead	Quantity	List price $5.60	Your price	Total $5.60
2702-08-08	45° Elbow, 1/2" JIC (3/4"-16 thread) x 1/2" JIC (3/4"-16 thread) Bulkhead	Quantity	List price $8.53	Your price	Total $8.53
2702-10-10	45° Elbow, 5/8" JIC (7/8"-14 thread) x 5/8" JIC (7/8"-14 thread) Bulkhead	Quantity	List price $12.38	Your price	Total $12.38
2702-12-12	45° Elbow, 3/4" JIC (1 1/16"-12 thread) x 3/4" JIC (1 1/16"-12 thread) Bulkhead	Quantity	List price $16.41	Your price	Total $16.41
2702-16-16	45° Elbow, 1" JIC (1 5/16"-12 thread) x 1" JIC (1 5/16"-12 thread) Bulkhead	Quantity	List price $48.38	Your price	Total $48.38
2702-20-20	45° Elbow, 1-1/4" JIC (1-5/8"-12 thread) x 1-1/4" JIC (1-5/8"-12 thread) Bulkhead	Quantity	List price $56.91	Your price	Total $56.91

Items of 9 items

Page:of 1
