FS2501

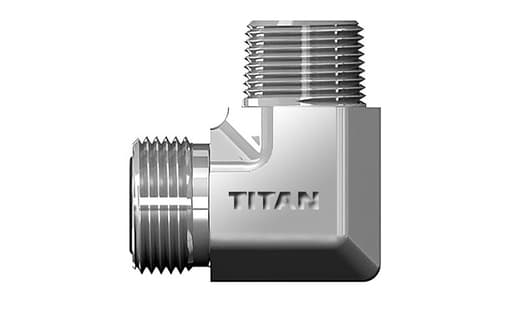

SAE O-Ring Face Seal ORFS Male x NPTF Pipe Male 90° Elbow | Hydraulics Direct

O-Ring Face Seal (ORFS) Adapters are made from high-pressure steel and coated with Carbon Zinc Trivalent to boost corrosion resistance. Compliant with SAE J5143 standards, these adapters have straight threads and an O-ring, ensuring a secure seal between male and female connections. Additionally, the fittings are versatile and can adapt to various thread types, including JIC, NPT, and NPSM, enhancing their applicability across different hydraulic systems.

Material:Carbon Steel

Plating:Trivalent Zinc

Shaping:Forged

O-Ring Material:NBR (Buna-N) (Viton available upon request)

Dimensional Drawings

Technical Specs

Size:

Item code	Item name	Qty	List price	Your price	Total
FS2501-04-02	90° Elbow, 1/4" ORFS x 1/8" NPTF Male	Quantity	List price $3.40	Your price	Total $3.40
FS2501-04-04	90° Elbow, 1/4" ORFS x 1/4" NPTF Male	Quantity	List price $3.71	Your price	Total $3.71
FS2501-04-06	90° Elbow, 1/4" ORFS x 3/8" NPTF Male	Quantity	List price $4.32	Your price	Total $4.32
FS2501-04-08	90° Elbow, 1/4" ORFS x 1/2" NPTF Male	Quantity	List price $6.52	Your price	Total $6.52
FS2501-06-04	90° Elbow, 3/8" ORFS x 1/4" NPTF Male	Quantity	List price $4.68	Your price	Total $4.68
FS2501-06-06	90° Elbow, 3/8" ORFS x 3/8" NPTF Male	Quantity	List price $5.16	Your price	Total $5.16
FS2501-06-08	90° Elbow, 3/8" ORFS x 1/2" NPTF Male	Quantity	List price $6.70	Your price	Total $6.70
FS2501-08-04	90° Elbow, 1/2" ORFS x 1/4" NPTF Male	Quantity	List price $7.05	Your price	Total $7.05
FS2501-08-06	90° Elbow, 1/2" ORFS x 3/8" NPTF Male	Quantity	List price $5.47	Your price	Total $5.47
FS2501-08-08	90° Elbow, 1/2" ORFS x 1/2" NPTF Male	Quantity	List price $6.98	Your price	Total $6.98
FS2501-08-12	90° Elbow, 1/2" ORFS x 3/4" NPTF Male	Quantity	List price $8.65	Your price	Total $8.65
FS2501-10-08	90° Elbow, 5/8" ORFS x 1/2" NPTF Male	Quantity	List price $7.57	Your price	Total $7.57
FS2501-10-12	90° Elbow, 5/8" ORFS x 3/4" NPTF Male	Quantity	List price $9.99	Your price	Total $9.99
FS2501-10-16	90° Elbow, 5/8" ORFS x 1" NPTF Male hydraulic fittings	Quantity	List price $15.37	Your price	Total $15.37
FS2501-12-08	90° Elbow, 3/4" ORFS x 1/2" NPTF Male	Quantity	List price $10.69	Your price	Total $10.69
FS2501-12-12	90° Elbow, 3/4" ORFS x 3/4" NPTF Male	Quantity	List price $10.08	Your price	Total $10.08
FS2501-12-16	90° Elbow, 3/4" ORFS x 1" NPTF Male	Quantity	List price $16.66	Your price	Total $16.66
FS2501-16-12	90° Elbow, 1" ORFS x 3/4" NPTF Male	Quantity	List price $16.32	Your price	Total $16.32
FS2501-16-16	90° Elbow, 1" ORFS x 1" NPTF Male	Quantity	List price $15.55	Your price	Total $15.55
FS2501-20-16	90° Elbow, 1-1/4" ORFS x 1" NPTF Male	Quantity	List price $34.02	Your price	Total $34.02
FS2501-20-20	90° Elbow, 1-1/4" ORFS x 1-1/4" NPTF Male	Quantity	List price $34.51	Your price	Total $34.51
FS2501-24-24	90° Elbow, 1-1/2" ORFS x 1-1/2" NPTF Male	Quantity	List price $67.85	Your price	Total $67.85
FS2503-04-02	45° Elbow, 1/4" ORFS x 1/8" NPTF Male hydraulic fittings	Quantity	List price $3.99	Your price	Total $3.99

Items of 23 items

Page:of 1
