6402

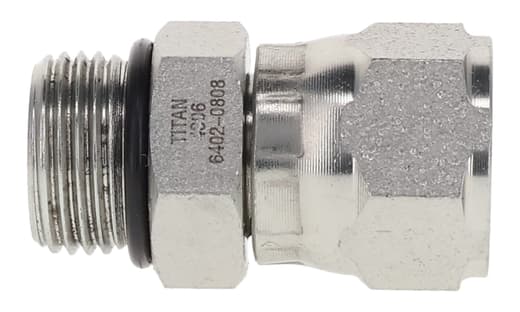

SAE O-Ring Boss ORB Male x 37° JIC SAE Flare Female Swivel Nut Adapter

SAE O-Ring Boss (ORB) hydraulic adapters are made from pressure-resistant carbon steel, known for its durability in demanding hydraulic environments. These adapters facilitate conversions to NPT (National Pipe Thread), JIC (Joint Industry Council) following SAE J514 specifications, and NPSM (National Pipe Straight Mechanical), each designed with specific threading and sealing features to suit various hydraulic system requirements. To improve their longevity and resistance to corrosion, these adapters are finished with a zinc-trivalent anti-corrosion coating.

Material:Carbon Steel

Plating:Trivalent Zinc

Shaping:Forged

O-Ring Material:NBR (Buna-N) (Viton available upon request)

Dimensional Drawings

Technical Specs

Competitor Cross Reference

Size:

Item code	Item name	Qty	List price	Your price	Total
6402-04-04	1/4" ORB (7/16"-20 thread) Male x 1/4" JIC (7/16"-20 thread) Female Swivel	Quantity	List price $4.76	Your price	Total $4.76
6402-04-06	1/4" ORB (7/16"-20 thread) Male x 3/8" JIC (9/16"-18 thread) Female Swivel	Quantity	List price $5.47	Your price	Total $5.47
6402-06-04	3/8" ORB (9/16"-18 thread) Male x 1/4" JIC (7/16"-20 thread) Female Swivel	Quantity	List price $6.17	Your price	Total $6.17
6402-06-06	3/8" ORB (9/16"-18 thread) Male x 3/8" JIC (9/16"-18 thread) Female Swivel	Quantity	List price $4.77	Your price	Total $4.77
6402-06-08	3/8" ORB (9/16"-18 thread) Male x 1/2" JIC (3/4"-16 thread) Female Swivel	Quantity	List price $6.13	Your price	Total $6.13
6402-08-06	1/2" ORB (3/4"-16 thread) Male x 3/8" JIC (9/16"-18 thread) Female Swivel	Quantity	List price $10.74	Your price	Total $10.74
6402-08-08	1/2" ORB (3/4"-16 thread) Male x 1/2" JIC (3/4"-16 thread) Female Swivel	Quantity	List price $5.15	Your price	Total $5.15
6402-10-08	5/8" ORB (7/8"-14 thread) Male x 1/2" JIC (3/4"-16 thread) Female Swivel	Quantity	List price $7.41	Your price	Total $7.41
6402-10-10	5/8" ORB (7/8"-14 thread) Male x 5/8" JIC (7/8"-14 thread) Female Swivel	Quantity	List price $7.99	Your price	Total $7.99
6402-12-12	3/4" ORB (1 1/16"-12 thread) Male x 3/4" JIC (1 1/16"-12 thread) Female Swivel	Quantity	List price $7.86	Your price	Total $7.86
6402-16-12	1" ORB (1 5/16"-12 thread) Male x 3/4" JIC (1 1/16"-12 thread) Female Swivel	Quantity	List price $14.36	Your price	Total $14.36
6402-16-16	1" ORB (1 5/16"-12 thread) Male x 1" JIC (1 5/16"-12 thread) Female Swivel	Quantity	List price $19.24	Your price	Total $19.24
6402-20-20	1 1/4" ORB (1 5/8"-12 thread) Male x 1-1/4" JIC (1-5/8"-12 thread) Female Swivel	Quantity	List price $38.00	Your price	Total $38.00
6402-24-24	1 1/2" ORB (1 7/8"-12 thread) Male x 1-1/2" JIC (1-7/8"-12 thread) Female Swivel	Quantity	List price $34.51	Your price	Total $34.51

Items of 14 items

Page:of 1
